Weaner flooring

Country of Origin:

Main Export Markets:

劍桿織機

Post Date :2008-07-08

Expire Date :2009-07-08

View Basket

Detailed Trade Lead Description

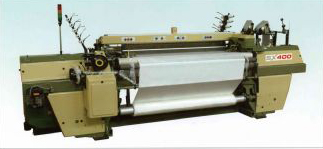

SX400 Rapier Weaving Machine Introduction
Features
1. Special filling insertion to SX400, for general fabrics or industrial fabrics, we provide suitable solution for you.
2. SX400 process wider range of yarn types and counts, and the advantage is especially evident when produce fine fabrics, heavy duty fabrics and industrial fabrics.
3. SX400 is compact, rigid inner and outer rapier can suspend when move into the shed and operate there without additional guide elements, all these futures can avoid warp suffer friction, and it means guarantees the quality of fabric maximum, minimal stop frequencies, better quality brings more profitable orders.
4. The cloth will not be greased, for it is no need to lubricate the inner rapier and the outer rapier, and the rapier are cooled in the air. The life of the rigid rapier is several times than flexible rapier.
5. The special design of the side frames are robust and give the loom great stability, no vibration. Operation life is long and maintenance are lower.
6. The SX400’s electronics are stable and reliable, providing auto pick finding device which can reduce starting marks effectively.

Technical Specifications
1.Nominal widths 1900-2300mm
2.Performance Up to 450 picks per minute(Nominal width 1900)
Up to more than 920 m/min of weft inserted(nominal width 2300)
3.Fabrics produced Fabrics with natural, artifical, synthetic and blended yarns, industrial fiber like glass fiber, carbon fiber etc. Weights from 15 to 800 g/m2.
4.Yarn woven Discontinuous yarns: 2Nm-200Nm.
Continuous yarns:10dTex-4000Dtex.
5.Weft color selector Electrical, 4-6-8 colors.
6.Filling insertion A right-hand rapier takes the weft to the centre of the machine. Here the left-hand rapier takes it and carried to the other side of the machine.
7.Tapes drive Rigid telescopic rapier driven by spatial linkage.
8.Sley Driven by positive coupled cam units.
9.Weft density from 2 to 150 picks/cm
10Warp let-off Mechanical let-off, time with the fabric regulator. Motorised positive let-off with electric control, timed with the fabric regulator.
11.Fabric regulator Mechanical fabric regulator, timed with the warp let=off. Motorrised positive fabric regulator with electronic, timed with the warp let-off.
12.Shed formation Mechanical positive dobbies. (maximum 20 frames). Electronic rotary dobbies.(maximum 20 frames)
13.Selvedges Mechanical independent device for leno.
Heat-sealed for synthetic yarns.
Lateral and central tuck-in devices.
14. Weft control Piezo-electronic filling detector.
15 Warp control Electronic warp stop motion with 6 rows.
16. Fabric take-up Up to 500mm in diameter.
Batching unit presenting on request.
17. Main drives Standard version: Asynchronous three-phase motor(5.5kw nominal power).

Products

More products from this category

	Company Information
	Jiangyin No.4 Textile Machinery Manufacturer Co., Ltd is focus on all kinds of warping machine manufacturing. It has more than 40 years’ machine manufacturing history and is the biggest and best warping machine supplier in China. Now more than 65% domestic market has been covered by us. And many products are exported to more than 10 countries or areas. The company has very good technical background, plenty produce experience, advanced manufacturing process and excellent quality system. In 2001, it has passed the ISO9001-2000 system. Now this company has two lines and every line can produce 600 machines per year. During past years, the company once was honored "High technique company of Jiangsu Province", "AAA credit standing company", "Civilized company of Wuxi", and many other glories. The main products of the company include, GA163D high speed sectional warping machine, GA163C high speed sectional warping machine, SHGA215C high speed sectional warping machine, GA124 high speed batch warping machine, GA125 high speed batch warping machine, GA269 high speed batch warping machine, GE210 tricot warping machine, GA278 flat yarn warping machine, GA339 type series warping-sizing combination machine, and other more than 10 kinds of machines. These products could satisfy to all kinds of process of our customers. And they can match many kinds of weaving machine of different customers, such as rapier, air jet, wafer jet, slip shuttle and other kinds. Further more, in 2007 we succeed to develop SX400 weaving machine, which is mainly used to weave special fibers, such as glass fiber, carbon fiber, and many other kinds of industrial clothes. We welcome inquires from whole globe and hope to develop cooperation relationship with all friends of the world.
