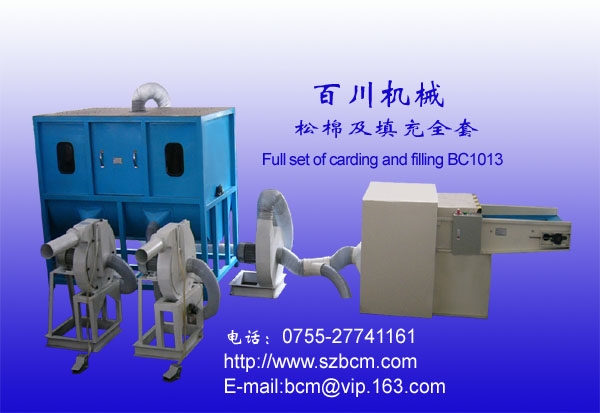

| Full set of fiber carding &pillow filling machine
BC1013=BC1001-560+BC503+BC1003-B+BC502
BC1001-560 (fiber carding machine)
Model BC1001-560
Dimensions(mm)(L*W*H) 2050*900*940
Power 4.75kw
Net weight 600kg
Capacity 120-150kg/hour
Voltage 380V, 50Hz, 3Phase
BC503(Fan feeding machine)
Model BC503
Dimensions(mm)(L*W*H) 610*520* 800
Power 2.2kw
Net weight 75kg
Capacity (Match fiber carding)
Voltage 380V, 50Hz, 3Phase
BC1003B(mixing machine)
Model BC1003-B
Dimensions(mm)(L*W*H) 1840*1100*1680
Power 4kw
Net weight 400kg
Capacity (Match fiber carding)
Voltage 380V, 50Hz, 3Phase
Container size 2CBM
BC502(filling maching)
Model BC502
Dimensions(mm)(L*W*H) 850*540*960
Power 1.5kw
Net weight 70kg
Capacity (Match fiber carding)
Voltage 380V, 50Hz, 3Phase
Air pressure <0.5MPa
Suitable for upholstery, Sofa and bedding production
The fiber carding machine is with metal detector, when there are some metal pieces on the machine’s belt, the machine will stop and turn reversely, carry the metal pieces out. In this way, it can avoid the machine being damaged.
BC1013 is the most favorable model by the customer who needs to add other material during the backrest, cushion, pillow filling process.
BC1001-560 for carding polyester, glue-spray cotton, BC1003-B for mixing other materials, such as wool, foam pieces, feather, BC502 for filling all the material into backrest, cushion, pillow.
Since BC1003-B has 4 outlets, it can match 1-4 BC502 to enhance the productivity.
Other match is available,
BC1001-560 + BC1003-S + BC502;
BC1001-790 + BC1003-B + BC502
|
|
|
