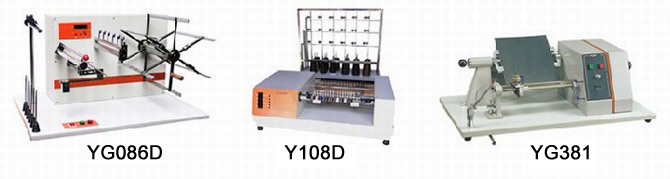

| YG086D Automatic Electronic Single End Yarn Strength Tester
INTRODUCTION
Wrap Reel Electronic. To produce skeins of yarn of a pre-determined length and number of turns for count and / or strength testing. 1 Metre, 36" or 54" circumference collapsible swift (specify). Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.
APPLICATIONS
ISO2060 BS
SPECIFICITION
(1) Circumference length of collapsible swift: 1000 (+ -) 1mm
(2) Rew of reel: 25 - 300RPM
(steeples speed, numeric presetting, auto tracking)
(3) Interval of spindle: 65cm
(4) Number of wrap: 2-9999 rev (presettable)
(5) Programmable stop: 1-9 rev (presettable)
(6) Traveling reciprocating distance: 35mm (+ -) 1mm
(7) Reeling tension: 0-100cN (presettable)
(8) Instrument Size: 780 x 660 x 480mm
(9) Instrument weight: 50kg
FEATURES:
Use MCU to control unit, allow numeric programming parameter (such as speed, bobbin number, reel presetting parameter are presettable), and auto tracking speed of reel, have two startup model (hard startup, soft startup), all make unit work consistently and stably.
(1) Precision DC servo motor with synchromesh belt makes precisely positioning;
(2) Numeric speed controlling panel, make unit work consistently and stably;
(3) Have two optional startup model (hard startup, soft startup), do not break yarn when startup;
(4) Electronic limit trips, total rev number and user programmable stops;
(5) Speed tracking system, insure to keep even speed when Voltage is variable
STANDARD CONFIG:
(1) Wrap reel electronic machine; |
|
|
| |
