Weaner flooring

Country of Origin:

Main Export Markets:

GA841 Model Hooking Machine

Post Date :2008-08-19

Expire Date :2009-08-19

View Basket

Detailed Trade Lead Description

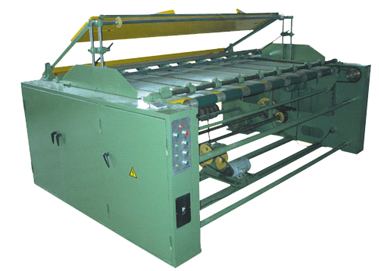

Of series product type,automatic cloth folding machines used in weaving,dyeing and printing workshops can fold cloth or fabric deliver from cloth brusher or fabric inspecting machine into piece goods at a set length.
Three motors are used to control folding,beam elevating and cloth discharge device respectively.All these actions like sewing-up signal,delayed stopping and automatic beam lifing,blade setting,cloth discharging,beam falling and cloth folding are controlled electrically.Besides,there are two automats,one controls storage box(it operates while cloth exists,otherwise if stops),the other controls cloth delivery(it stops while cloth is on the folding table,otherwise it works).
Principles of automation:Switche control is used to command sewing-up signal and motors,and stroke switchs are equipped for coordinating each action.By adjusting positions of stroke switches,the duration of automatic processes could be controled as production required.
This electronically controlled machinery with ball bearing drive features convenience,stability and reliabillity in operation,low noise,novel apperance and rational construction.
MAIN SPECIFCATIONS

Table width(mm) 1100 ， 1300 ， 1600 ， 1800 ， 2000 ， 2500 ， 2800 ， 3000
Length per fold(mm) 900~1020
Lifting of folding platen no less than 170mm
Folding speed 110~180 80 folds/min

200 65folds/min

250~300 40folds/min
Motors For folding 0.6kw 940r/min

For elevating 0.37kw 910r/min

For cloth discharging 0.6kw 940r/min
Overall dimensions(mm) GA841-110 2160*1790*1500

GA841-130 2160*1990*1550

GA841-160 2160*2290*1500

GA841-180 2160*2490*1500

GA841-200 2160*2690*1500

GA841-250 2160*3190*1500

GA841-280 2160*3490*1500

GA841-300 2160*3690*1500
Weigh,approx.(kg) GA841-110 1000

GA841-130 1140

GA841-160 1300

GA841-180 1440

GA841-200 1600

GA841-250 1780

GA841-280 1900

GA841-300 2140

Products

More products from this category

	Company Information
	Wuxi Goldensun NEW Textile Machinery Fittings Co.,Ltd is professional manufacturer of various shuttlesless loom fittings,the earliest one in China. It has got ISO9001:2000 Certificate. It has registered in China Technology Coordination netwook on water-jet,air-jet and rapier loom and jiangsu Institute of Testile Machinery Equipment Industry as member. It was founded in 1991 and expanded workshop scale in 1999.Additional workshop covered the area of over 6000m2.At present our company has been,with equipped with strong technical capacity and complete inspection methods,producer of scale in China specializing in series of big batch hydraulic warp beam mounting plaiting transporcart.We produce several kinds of loom fittings,such as MJ series electric-hydraulic transportcart applicable for towel loom and warp beam loom mounting,oscillating shaft;warp beam roller;WJK series warp beam micro-chip controlled storage chamber;cloth inspection machine;reeding machine;top palm frame patch lifter and particular attached pump for Toyota air-jet loom as well as shaft leveling device,ceramic blade and one-way valve. YJC series hydraulic mounting plaiting transportcart,our most competitive product currently,are the exclusive one honored with several state technology patents titles (i.e.00249508.2,00249505.8,00249503.1,00249506.6,00249504.x00249507.4).Our clients spread around the country,especially in Jiangsu,Zhejiang,Shanghai areas,amounting to above 1600.Our products have passed strict inspection and got approval of State lmport & Export Goods Inspection Bureau.Approved quality and favorable enterprise credit win appraisals and trusts from broad customers.In addition of home customers,our products have sold abroad like Vietnam,Thailand,syria,Yemen,Pakistan,India as well as Hong Kong and Taiwan areas.We have famed China During transfer from import to export. Our company always attaches importance on new products R&D to strive for satisfying with customers demands. We did and will produce satisfactory products to appreciate customers considerations and confidence in the principle of customer-orientation,scientific attitude,seeking for better forever,humidity and good faith.
